We offer five types pot magnet.



Pot magnets are strong magnets that are developed for the current industrial needs. They are made up of magnets like NdFeB, SmCo, AlNiCo, hard ferrite, plastic, rubber and other components. These magnets can produce a magnetic field on its exclusive surface. Depending on the usage, pot magnets are of different size, shape and width. Different types of pot magnets functions in different temperature. However they give same result in the normal temperature.



Application:

These magnets are versatile magnets which are designed for various industrial applications. The popular industries in which these magnets are used are as follows:

  • The metal and steel industry
  • Tool shops
  • Used to position ferrous-magnetic work pieces

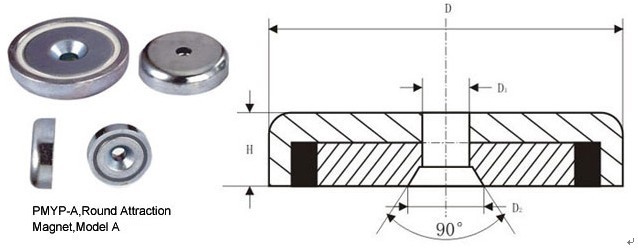

  • Type A

    Model D D1 D2 H
    PMyp-A16 16 3.5 6.5 5
    PMyp-A20 20 4.5 8.6 7
    PMyp-A25 25 5.5 10.4 8
    PMyp-A32 32 5.5 10.4 8
    PMyp-A42 42 6.5 12 9
    PMyp-A48 48 8.5 16 11.5
    PMyp-A60 60 8.5 16 15
    PMyp-A75 75 10.5 19 18

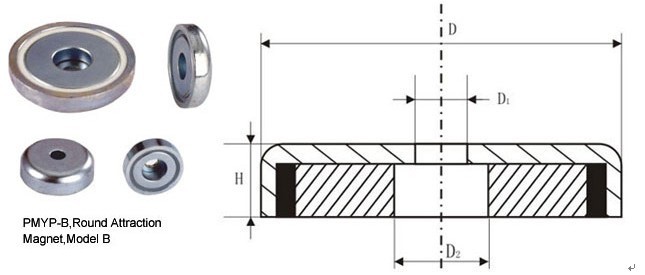

    Type B



    Model D D1 D2 H
    PMyp-B16 16 3.5 6.5 5
    PMyp-B20 20 4.5 8 7
    PMyp-B25 25 5.5 9 8
    PMyp-B32 32 5.5 9 8
    PMyp-B36 36 6.5 11 8
    PMyp-B42 42 6.5 11 9
    PMyp-B48 48 8.5 15 11.5
    PMyp-B60 60 8.5 15 15
    PMyp-B75 75 10.5 18 18

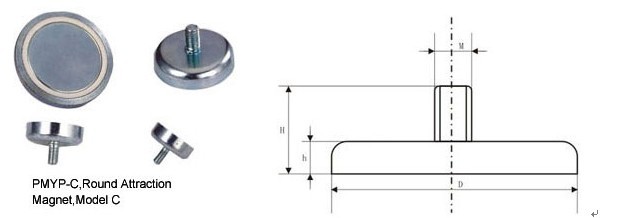

    Type C

    Model D M H h
    PMyp-C10 10 3 12 5
    PMyp-C12 12 3 13 5
    PMyp-C16 16 4 13 5
    PMyp-C20 20 4 15 7
    PMyp-C25 25 5 17 8
    PMyp-C32 32 6 18 8
    PMyp-C36 36 8 18 8
    PMyp-C42 42 8 20 9
    PMyp-C48 48 8 24 11.5
    PMyp-C60 60 10 30 15
    PMyp-C75 75 10 34 18

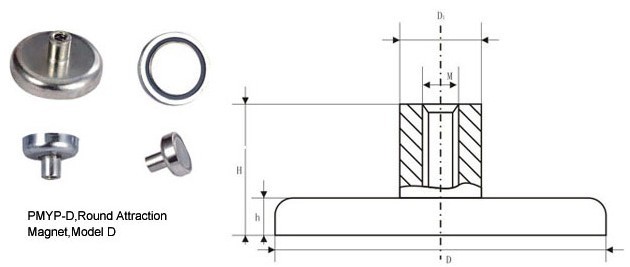

    Type D

    Model D M D1 H L
    PMyp-D10 10 3 5.5 12 5
    PMyp-D12 12 3 6 13 5
    PMyp-D16 16 4 6 13 5
    PMyp-D20 20 4 8 15 7
    PMyp-D25 25 5 10 17 8
    PMyp-D32 32 6 10 18 8
    PMyp-D36 36 8 10 18 8
    PMyp-D42 42 8 12 20 9
    PMyp-D48 48 8 12 24 11.5
    PMyp-D60 60 10 14 30 15
    PMyp-D75 75 10 14 33 18

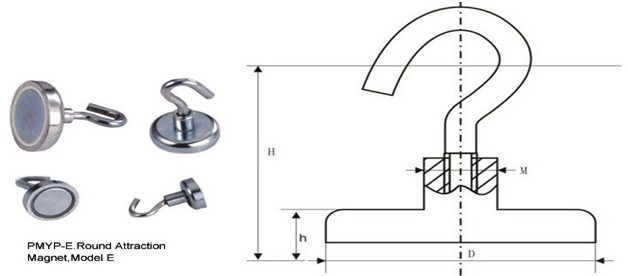

    Type E

    Model D M H
    PMyp-E10 10 3 30
    PMyp-E12 12 3 30
    PMyp-E16 16 4 37
    PMyp-E20 20 4 45
    PMyp-E25 25 4 47
    PMyp-E32 32 4 48
    PMyp-E36 36 4 48
    PMyp-E42 42 5 60
    PMyp-E48 48 5 64
    PMyp-E60 60 6 70
    PMyp-E75 75 6 76
